ClimateMaster 5 R-454B Right Return Ton Vertical Water Source Heat Pump – Model SCK060AJCX0S0PB
$4,391.89
Commercial 5 ton ClimateMaster SC Series vertical water source heat pump equipped with R-454B low-GWP refrigerant and a right return configuration for high-efficiency geothermal HVAC performance.
- Description
- Additional information
- Reviews (0)
Description
The ClimateMaster R-454B Right Return 5 Ton Vertical Water Source Heat Pump – Model SCK060AJCX0S0PB is engineered for high-demand commercial geothermal systems requiring top-tier efficiency, reliable operation, and a compact footprint. Built to exceed ASHRAE 90.1 performance requirements, this SC Series vertical unit delivers powerful heating and cooling using environmentally responsible R-454B refrigerant.
The vertical upflow configuration with right return simplifies installation in mechanical rooms, retrofits, and new-construction commercial projects. A scroll compressor mounted on double isolation reduces sound and vibration, while the insulated cabinet ensures quiet operation. The unit integrates seamlessly with building management systems including BACnet, Modbus, and Johnson Controls N2.
This ClimateMaster 5-ton model provides consistent performance across water loop, ground loop, and groundwater applications, giving engineers and contractors a versatile geothermal HVAC solution built for long-term reliability.
Additional information
| Weight | 337 lbs |
|---|---|
| Dimensions | 29.30 × 25.5 × 50.50 in |
| Model Number | SCK060AJCX0S0PB |
| Brand | ClimateMaster |
| Series | SC Series |
| Type | Vertical Water Source Heat Pump |
| Capacity | 5 Ton |
| Refrigerant | R-454B |
| Configuration | Right Return |
| Cooling Capacity | ~59,400 BTU |
| Heating Capacity | ~70,000 BTU (water loop) |
| EER – Water Loop | 13.2 |
| EER – Ground Loop | 15 |
| EER – Ground Water | 18.2 |
| Compressor | Scroll |
| Voltage | 208–230V, 1 Phase |
| AHRI Certified | Yes |
| Application | Commercial Geothermal HVAC |
Be the first to review “ClimateMaster 5 R-454B Right Return Ton Vertical Water Source Heat Pump – Model SCK060AJCX0S0PB”
You must be logged in to post a review.
Related products
-

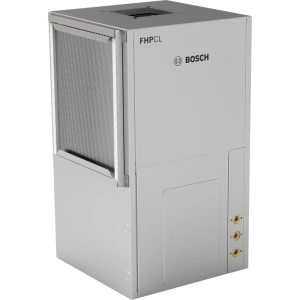

Bosch, Water Source / Geothermal Heat PumpBosch CL048‑1VTC‑LRT‑PUA – 4 Ton Right‑Return Water‑Source Heat Pump (R‑454B)
$4,020.62 CL048-1VTC-LRT-PUA -
Water Source / Geothermal Heat PumpClimateMaster C41SCK036AGCX0S0PB 3 Ton Water Source Heat Pump – R-454B, Right Return
$3,349.50 C41SCK036AGCX0S0PB -
Water Source / Geothermal Heat PumpClimatemaster 2.5 Ton R-454B Copper Vertical Water Source Heat Pump – (Left Return)
$3,132.68 C41SCT030AGCX0S0PB -

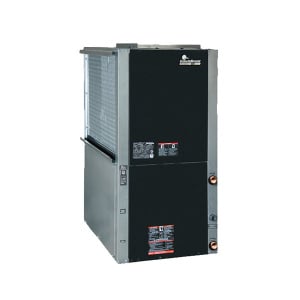

Water Source / Geothermal Heat PumpCLIMATEMASTER R454B (LEFT RETURN) 3.5 Ton. WATER SOURCE HEAT PUMP C41SCT042AGCX0S0PB
