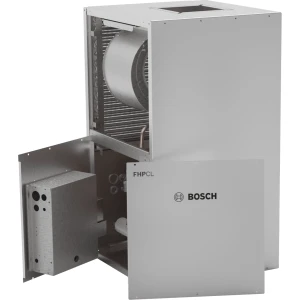

Bosch CL Series 2.5 Ton Water Source Heat Pump with Open Cabinet Showing Internal Components and Slide-Out Blower Bosch CL030-1VTC-LLT-PU 2.5-Ton CL Series Water Source Heat Pump – R-454B, Vertical, Single-Stage, Low-GWP, Slide-Out Blower (Right Return)
Climatemaster 2 Ton Vertical R-454B Water Source Heat Pump with Copper Coil – Left Return ClimateMaster 2.5 Ton Water Source Heat Pump – Vertical, 265V Single-Phase, R-454B, (Right Return)

ClimateMaster 2 Ton Water Source Heat Pump – Vertical 208/230V 1-Phase, R-454B, (Right Return)

0 out of 5
( There are no reviews yet. )

$3,009.83

ClimateMaster 2 Ton horizontal water source heat pump with R-454B refrigerant, 208/230V 1-phase power, standard heat exchanger, and right return air. Built for energy-efficient commercial HVAC systems.

Availability: 3 in stock SKU: C41SCK024AGCX0S0PB

Description

The ClimateMaster 2 Ton Horizontal Water Source Heat Pump is a high-efficiency HVAC solution for commercial, multi-family, and institutional applications. Operating on 208/230V three-phase power, this model features a right-side return air configuration, standard heat exchanger, and environmentally conscious R-454B refrigerant.

Delivering 24,700 BTU/h cooling and 28,800 BTU/h heating in water loop conditions, this unit reaches an EER of 14.7 and COP of 5.0. Under ground water conditions, the unit achieves up to 27,500 BTU/h cooling and 24,200 BTU/h heating, with a high EER of 23.3 and COP of 4.4.

Designed and manufactured in the USA, this ClimateMaster heat pump is a compact, horizontal solution ideal for new construction or retrofit jobs requiring consistent performance and efficiency.

Additional information

Weight 222 lbs
Dimensions 40 × 22 × 22 in
Brand:

ClimateMaster
Nominal Capacity:

2 Ton
Unit Orientation:

Horizontal
Voltage:

208/230V
Phase:

One-Phase
Refrigerant:

R-454B
Heat Exchanger:

Standard
Return Air Configuration:

Right
Cooling Capacity (Water Loop, 86°F EWT):

24,700 BTU/h
Heating Capacity (Water Loop, 68°F EWT):

28,800 BTU/h
EER (Water Loop):

14.7
COP (Water Loop):

5.0
Cooling Capacity (Ground Water, 59°F EWT):

27,500 BTU/h
Heating Capacity (Ground Water, 50°F EWT):

24,200 BTU/h
EER (Ground Water):

23.3
COP (Ground Water):

4.4
Shipping Weight:

179 lbs
Shipping Dimensions (L x W x H):

43.00" x 20.10" x 18.30"
Harmonized Code:

8415.81.0110
Country of Origin:

United States
