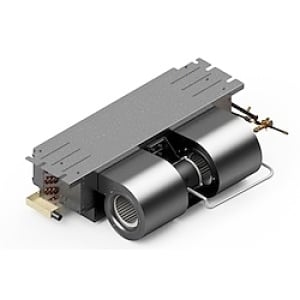

First Co 13HBC3-LH Commercial Ceiling Fan Coil – 3 Ton, 1300 CFM, Uncased, Horizontal, Left-Hand, 120V
$1,189.65
High-performance 3-ton commercial ceiling fan coil from First Co’s HBC Series. Designed for horizontal concealed left-hand installations, it features copper tube/aluminum coil construction, PSC motor, and 120V operation.
- Description
- Additional information
- Reviews (0)
Description
The First Co 13HBC3-LH from the HBC Series is a powerful, efficient 3-ton ceiling fan coil unit built for commercial HVAC systems. Engineered for horizontal, concealed, left-hand configurations, this uncased unit delivers 1,300 CFM of air performance and features copper tube/aluminum coils for maximum heat transfer and durability.
With a 3-row coil, standard PSC motor, and a sloped, insulated drain pan, the 13HBC3-LH is built to handle demanding applications while reducing maintenance issues. The unit operates on 120V and comes equipped with a 3/4″ drain connection and 5/8″ connections for chilled water (CW) and hot water (HW).
This fan coil is ideal for commercial projects requiring compact, concealed ceiling installations with a left-hand connection layout. Johnstone Supply supports the product under manufacturer warranty policies, and it is available for wholesale customers only.
Additional information
| Weight | 75 lbs |
|---|---|
| Dimensions | 46 × 22 × 17 in |
| Manufacturer | First Co |
| Model Number | 13HBC3-LH |
| Series | HBC Series |
| Nominal Tons | 3 |
| Nominal CFM | 1,300 |
| Voltage | 120V |
| Motor Type | Standard PSC |
| Coil Rows | 3 |
| Coil Material | Copper Tube / Aluminum Fin |
| Configuration | Horizontal, Concealed, Left-Hand |
| Casing | Uncased |
| Water Connection Size | 5/8" (CW & HW) |
| Drain Connection | 3/4" |
| Unit Width | 59-1/8" |
| Unit Depth | 21-1/2" |
| Unit Height | 10" |
| Unit Weight | 87 lbs |
| Shipping Width | 29.13" |
| Shipping Length | 21.00" |
| Shipping Height | 10.00" |
| Drain Pan | Sloped and Insulated |
| Installation Type | Ceiling Mount, Horizontal |
| Hand Configuration | Left-Hand |
| Transformer | 24V |
| Application | Commercial HVAC Systems |
| Warranty | Manufacturer Warranty |
