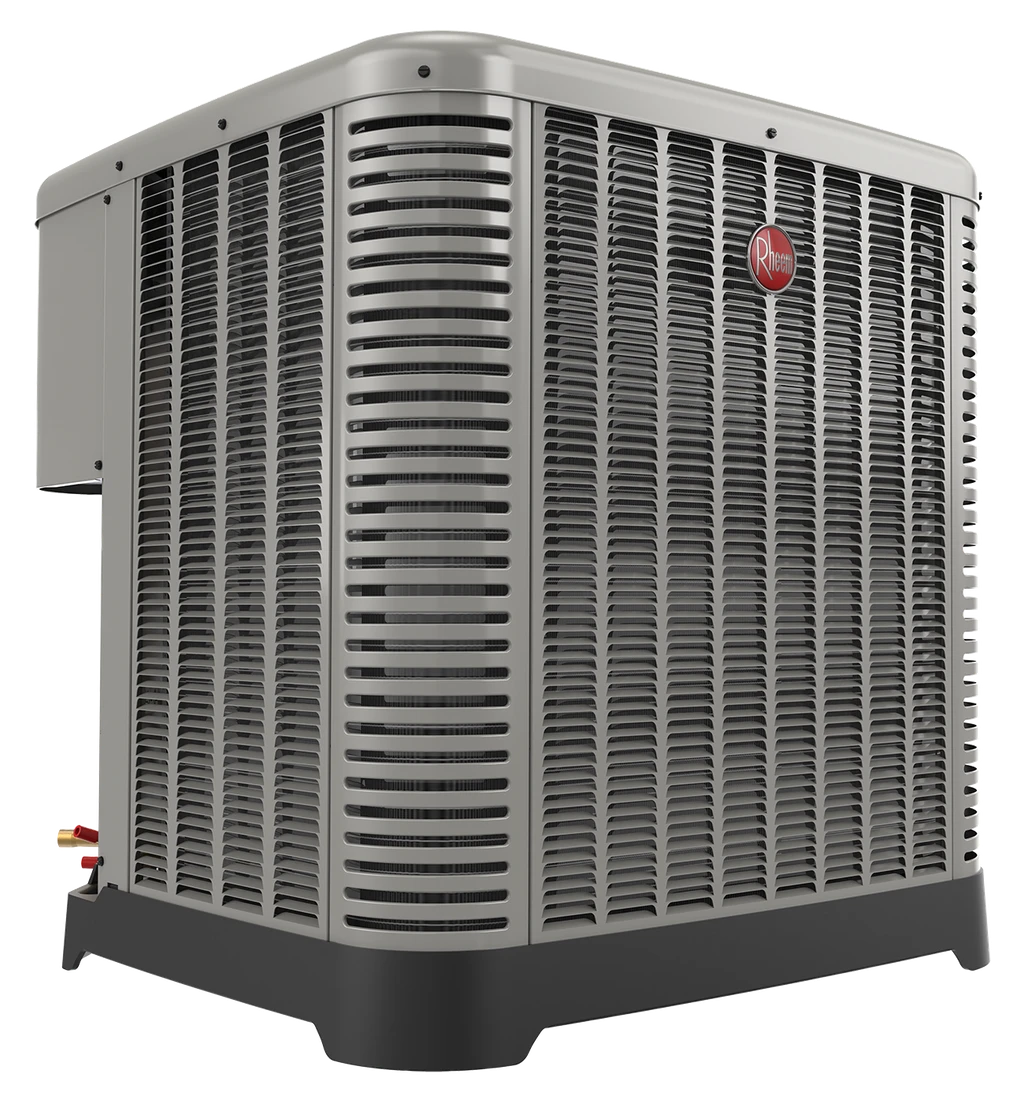

4‑Ton Rheem RA14AY48AJ1NA Endeavor Line Classic Series Residential Split Air Conditioner

The 4‑Ton Rheem RA14AY48AJ1NA from the Endeavor Line Classic Series is engineered to deliver powerful, efficient, and eco-friendly residential cooling. Designed with R‑454B refrigerant and a dependable scroll compressor, it meets ENERGY STAR® standards and EPA compliance.

Key Highlights:

• Cooling Capacity: 48,000 BTU/h (4 Ton)

• Efficiency Ratings: 15.2 SEER2 / 12 EER2

• Refrigerant: R‑454B, 142 oz factory charge for ~15 ft line set

• Compressor: Single-stage scroll type

• Sound Level: Quiet 74 dB operation

• Coil Design: 7 mm copper tube, 19.5 ft² net face, 24 FPI

• Fan: 24″ diameter, 3-blade, 1/5 hp motor, 3,606 CFM @ 850 RPM

• Electrical Specs: 208–230 V, 1-phase, 60 Hz; MCA 30 A; MOCP 50 A; RLA 22 A; LRA 126 A

• Net Weight: 243 lb; Shipping Weight: 250 lb

• Dimensions (Net): 35″ H × 33.75″ W × 33.75″ D; Shipping Depth: 36.38″

• PlusOne® Features: Expanded valve space, Triple Service Access, Refrigerant Detection System

• Certifications: ENERGY STAR®, AHRI, ETL, EPA compliant

• Warranty: 10‑year limited parts (registration required)

Ideal For:
Single-family residential applications needing reliable, efficient, and environmentally responsible cooling with simplified maintenance and installation.
