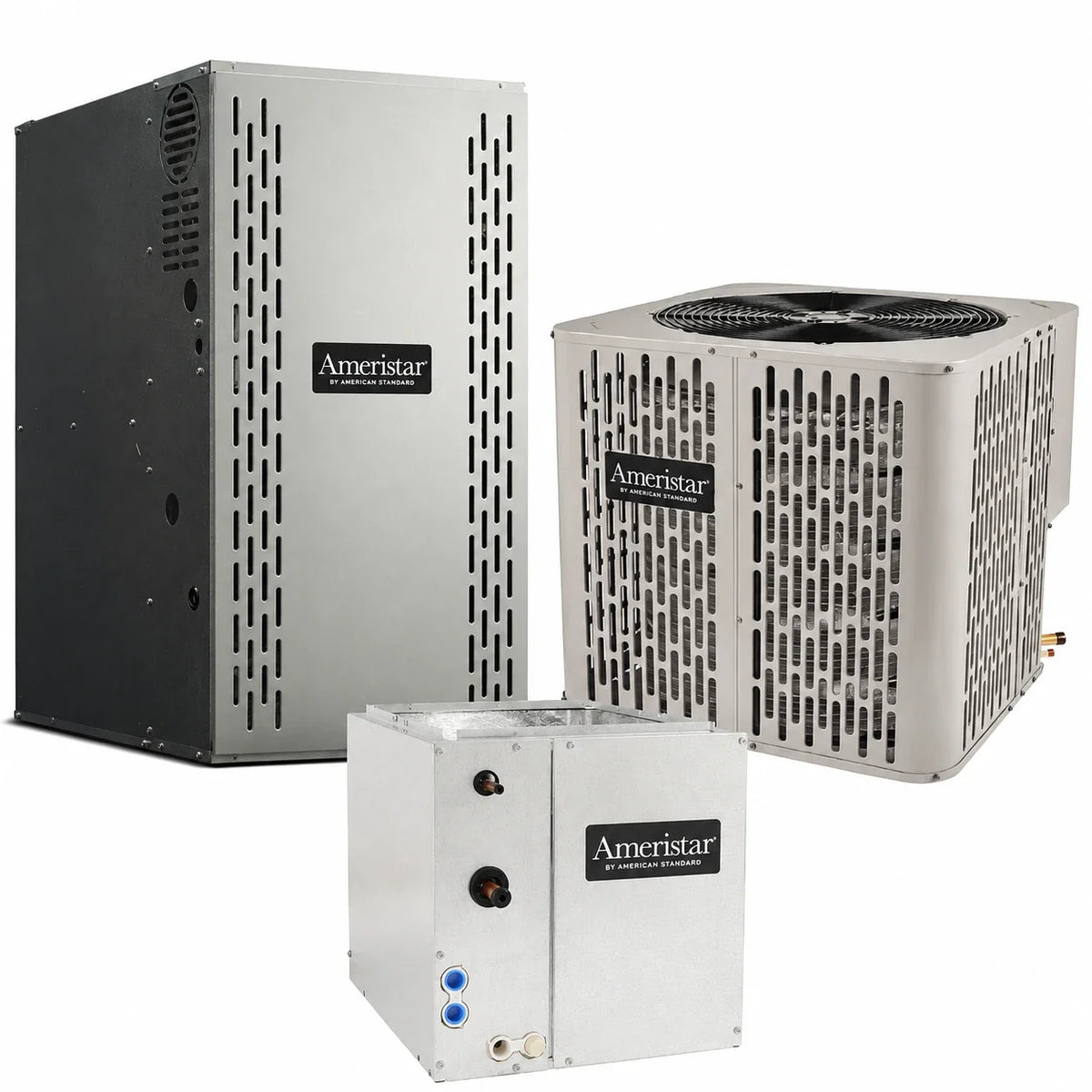

Ameristar 2 Ton Complete AC & Gas Furnace System – 14.3 SEER2 R-454B – 40,000 BTU Furnace + Condenser + Cased Coil

Ameristar 2 Ton Complete AC & Gas Furnace System

The Ameristar 2 Ton Complete AC & Gas Furnace System combines a 24,000 BTU R-454B outdoor condenser, multi-position cased evaporator coil, and 40,000 BTU 80% AFUE gas furnace into a complete residential split-system equipment package.

This system features single-stage cooling and gas heating, with a 14.3 SEER2 outdoor condenser and a constant-torque ECM furnace blower. The included furnace and evaporator coil both feature 14.5-inch cabinet widths, providing a clean indoor equipment match.

Complete System Includes

Ameristar A5AC4024A1000 Condenser – 2 Ton / 24,000 BTU, 14.3 SEER2, R-454B

RunTru 5MXCA003AC6HCA Cased Evaporator Coil – 1.5–3 Ton, R-454B, Multi-Position, 14.5" Cabinet

Ameristar A801X040AM3SD Gas Furnace – 40,000 BTU Input, 80% AFUE, Single Stage, 14.5" Cabinet

Ameristar A5AC4024A1000 Outdoor Condenser

The included A5AC4024A1000 is a 2-ton straight-cool outdoor condenser designed for residential R-454B split-system applications.

Condenser Features:

2 Ton / 24,000 BTU nominal cooling capacity

14.3 SEER2

R-454B refrigerant

Single-stage operation

Scroll compressor

All-aluminum outdoor coil

208/230V

Single phase

60 Hz

RunTru 5MXCA003AC6HCA Cased Evaporator Coil

The 5MXCA003AC6HCA is an aluminum multi-position cased evaporator coil designed for R-454B systems. Its 1.5–3 ton capacity range supports the included 2-ton outdoor condenser.

The coil uses a 14.5-inch cabinet, matching the width of the included A801X040AM3SD furnace for a clean indoor equipment stack.

Evaporator Coil Features:

1.5–3 ton capacity range

R-454B refrigerant

Aluminum coil construction

Multi-position configuration

Fixed metering device

14.5" cabinet width

Dimensions: 20" H × 14.5" W × 21" D

3/4" gas line connection

3/8" liquid line connection

3/4" NPT drain connection

Ameristar A801X040AM3SD Gas Furnace

The A801X040AM3SD provides gas heating and indoor airflow for the complete system. It features a 40,000 BTU input rating, 80% AFUE efficiency, single-stage gas operation, and a constant-torque ECM blower motor.

Its multi-position design supports upflow, horizontal, and downflow configurations for installation flexibility.

Furnace Features:

40,000 BTU input

32,300 BTU heating capacity

80% AFUE

Single-stage gas heating

Constant-torque ECM blower motor

Multi-position configuration

Upflow, horizontal, or downflow installation

14.5" cabinet width

120V

Single phase

60 Hz

Application & Installation

This complete equipment package is designed for residential applications requiring 2 tons of straight-cool air conditioning with gas furnace heating.

Proper equipment sizing should be determined based on the building's cooling and heating load. Installation requires appropriate electrical service, gas supply, venting, refrigerant piping, condensate drainage, airflow setup, refrigerant procedures, and system commissioning in accordance with manufacturer requirements and applicable codes.

Line set, thermostat, equipment pad, disconnect, drain pan, installation materials, and other accessories are not included unless specifically stated or added separately.
