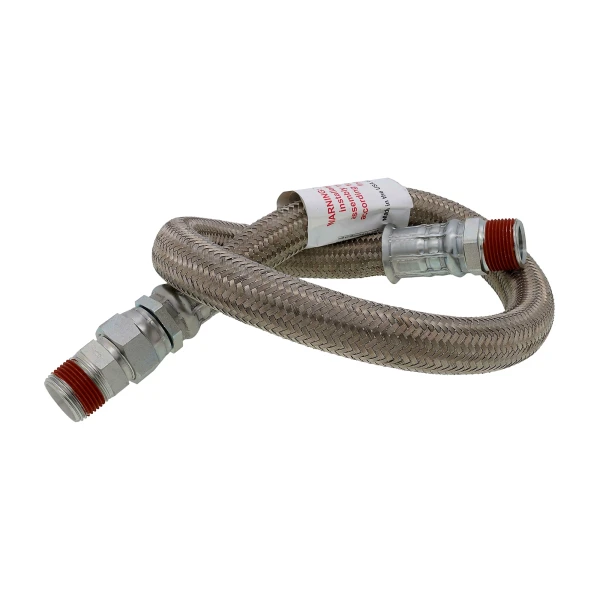

ChamFlex CH100036FM1000 1″ x 36″ Stainless Steel Braided Hose Assembly – Swivel MNPT x Fixed MNPT, 500 PSI, UL Rated
$75.81
ChamFlex CH100036FM1000 1″ x 36″ stainless braided hose, rated for 500 PSI working pressure, with Swivel MNPT x Fixed MNPT ends, Santoprene™ core, and UL Class A fire safety for chilled and hot water HVAC applications.
- Description
- Additional information
- Reviews (0)
Description
The ChamFlex CH100036FM1000 is a high-performance 1″ x 36″ flexible hose assembly designed for commercial HVAC systems requiring durability, safety, and fast installation. This premium-grade hose features a white UL 94 V-0 fire-rated Santoprene™ inner tube and a tightly woven 302/304 stainless steel outer braid, providing outstanding protection against pressure, vibration, and environmental wear.
Built for 500 PSI working pressure and up to 2000 PSI burst pressure, this hose assembly is compatible with a wide range of heating and cooling applications including fan coils, water source heat pumps, VAV boxes, and chilled beams. The temperature range from -40°F to 212°F ensures long-term performance in both cold and hot water systems.
The hose features Swivel MNPT x Fixed MNPT connections, simplifying alignment and installation. With UL 207 recognition, ASTM E84 / UL 723 Class A fire rating, and top-tier reliability, the CH100036FM1000 is a trusted choice for engineers and HVAC professionals working in demanding mechanical environments.
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 36 × 1 × 1 in |
| Brand | ChamFlex |
| Model | CH100036FM1000 |
| Inner Tube | White Santoprene™, UL 94 V-0 fire-rated |
| Outer Braid | 302/304 Stainless Steel |
| Hose Size | 1 inch |
| Connections | Swivel MNPT x Fixed MNPT |
| Working Pressure | 500 PSI |
| Burst Pressure | 2000 PSI |
| Temperature Range | -40°F to 212°F |
| Fire Rating | Class A (ASTM E84 / UL 723) |
| Certifications | UL 207 Recognized |
| Use Cases | Water source heat pumps, fan coils, VAV boxes, chilled beams |
