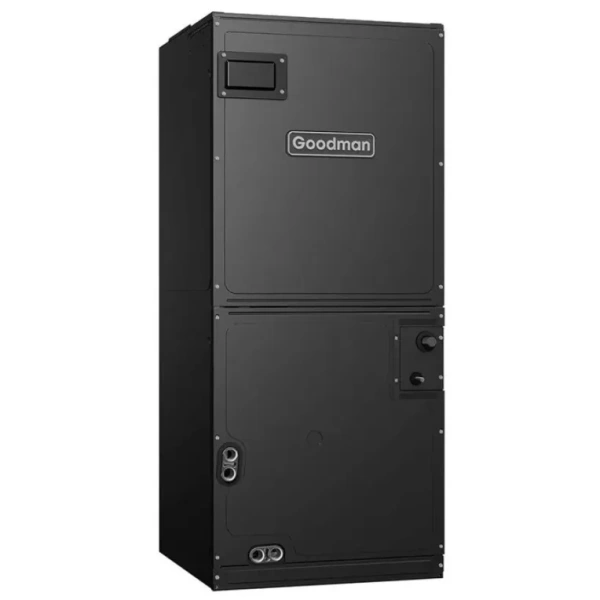

Goodman AMST30BU1400 Main Goodman AMST30BU1400 – 2.5 Ton Multi‑Position Air Handler

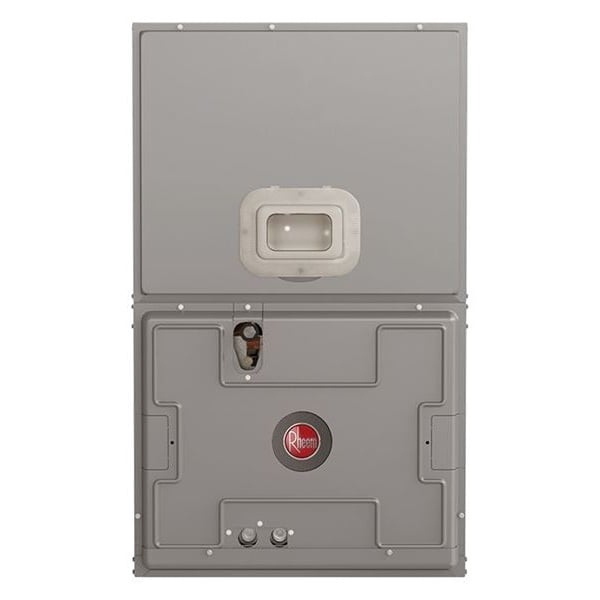

Rheem 1.5–2 Ton RB2TY2417STANMJB05 Multi-Position Air Handler – 35″ Height with 5kW Heat Kit | Endeavor Series | R-454B Ready

0 out of 5
( There are no reviews yet. )

$1,595.46

Compact 1.5–2 Ton Rheem air handler (RB2TY2417STANMJB05) with factory-installed 5kW electric heater. Only 35″ tall. Ideal for tight spaces. SEER2 compliant and R-454B compatible.

Availability: 6 in stock SKU: RB2TY2417STANMJB05

Description

The Rheem RB2TY2417STANMJB05 air handler from the Endeavor Series is designed to deliver powerful performance in a compact form factor. At only 35 inches tall, it’s perfect for installations in tight closets, mechanical rooms, or low-clearance attic spaces.

This model supports 1.5 to 2 Ton cooling systems and includes a factory-installed 5kW electric heat kit, making it ideal for year-round comfort.

Product Highlights:

  • Cooling Capacity: 1.5 – 2 Tons

  • Factory-Installed 5kW Heat Kit for supplemental electric heating

  • Multi-Position Design: Upflow, Downflow, Horizontal Left or Right

  • All-Aluminum Evaporator Coil – corrosion-resistant for long life

  • Factory-Installed TXV (Thermal Expansion Valve) for precise refrigerant control

  • Fully Insulated Cabinet for quiet operation and minimal thermal loss

  • Field-Reversible Drain Pan for flexible installation

  • SEER2 Compliant and R-454B Refrigerant Ready

Whether you’re upgrading an older system or installing new construction, this compact air handler delivers efficient, modern performance while saving valuable space.

Additional information

Weight 99 lbs
Dimensions 22.5 × 17.5 × 35 in
Brand

Rheem
Model Number

RB2TY2417STANMJB05
Product Line

Endeavor Series
Cooling Capacity

1.5 – 2 Tons
Heater Included

Yes – Factory-installed 5kW Electric Heat Kit
Air Handler Height

35 inches
Configuration

Multi-Position (Upflow / Downflow / Horizontal)
Refrigerant Compatibility

R-454B Ready
TXV Installed

Yes
Evaporator Coil Material

All-Aluminum
Cabinet Insulation

Fully Insulated
Voltage

208–230V
Phase

1-Phase
SEER2 Compliant

Yes
Application

Residential / Light Commercial
Warranty

10-Year Limited Manufacturer Warranty
