Rheem Endeavor 3.5 Ton Line Classic Series Condenser + 3.5–4 Ton Air Handler (24.5″ Width) – Optional Heat Kit
From: $3,650.85
High-efficiency Rheem SEER2 system with 3.5 ton condenser and 4 ton ECM air handler, compatible with optional 7.5 kW heat kit for flexible comfort solutions.
- Description
- Additional information
Description
The Rheem Endeavor™ Line Classic Series SEER2 Split HVAC System combines powerful cooling with eco-conscious performance. This configuration includes the RA14AY42AJ1NA 3.5 Ton Straight Cool Condenser paired with the RH2TY4824STANNJ 4 Ton Multi-Position Air Handler. Built for long-lasting reliability, the condenser features a steel louvered cabinet and composite base for corrosion resistance. The air handler uses a high-efficiency ECM motor and supports upflow, downflow, and horizontal installation. Both units are optimized for the new R-454B refrigerant and meet all 2023+ SEER2 efficiency requirements.
An optional RXBH-1724A07J 7.5 kW electric heat kit is available for supplemental heating in colder climates (sold separately). Ideal for residential installs requiring performance, durability, and compliance with new EPA refrigerant standards.
Additional information
| System Type | Straight Cool (Electric Heat Optional) |
|---|---|
| Cooling Capacity | 42,000 BTU (3.5 Ton) |
| Air Handler Capacity | 48,000 BTU (4 Ton) |
| Condenser Model | RA14AY42AJ1NA |
| Air Handler Model | RH2TY4824STANNJ |
| Heat Kit Compatibility | RXBH-1724A07J (7.5 kW) – Optional |
| Refrigerant | R-454B (SEER2 Compliant) |
| Efficiency Rating | Up to 14.3 SEER2 |
| Motor Type | Constant Torque ECM Motor |
| Voltage | 208–230V, Single Phase, 60 Hz |
| Air Handler Configuration | Multi-Position (Upflow/Downflow/Horizontal) |
| Installation Location | Indoor & Outdoor Rated |
| Warranty | 10-Year Limited Parts (registration required) |
| Condenser Dimensions | Approx. 40″H × 37.75″W × 35.75″D |
| Air Handler Dimensions | Approx. 55.5″H × 24.5″W × 21.69″D |
3.5‑Ton Rheem RA14AY42AJ1NA Endeavor Line Classic Series Residential Split Air Conditioner
| Weight | 259 lbs |
|---|---|
| Dimensions | 35.63 × 35.63 × 35 in |
| Model | RA14AY42AJ1NA |
| Tonnage / Capacity | 3.5 Ton (42,000 BTU/h) |
| SEER2 / EER2 | 15.2 / 12 |
| Refrigerant | R‑454B, factory-charged with 142 oz |
| Compressor | Scroll |
| Coil | 7 mm copper, 19.5 ft² net face area, 24 FPI |
| Fan | 24″, 3-blade, 1/5 hp, 3,431 CFM @ 850 RPM |
| Sound Level | 73 dB |
| Electrical | 208–230 V, 1Φ, 60 Hz; MCA 20 A; MOCP 30 A |
| Operating Weight | 252 lb |
| Certifications | ENERGY STAR®, AHRI, ETL, EPA Low-GWP compliant |
| Warranty | 10-year limited parts (register) |
| Unit Dimensions | Height: 35 in (889 mm) × Width: 33.75 in (857 mm) × Depth: 33.75 in (857 mm) |

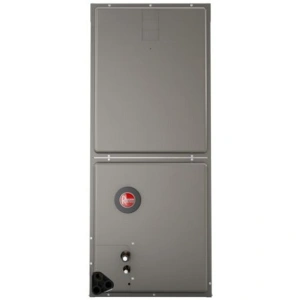

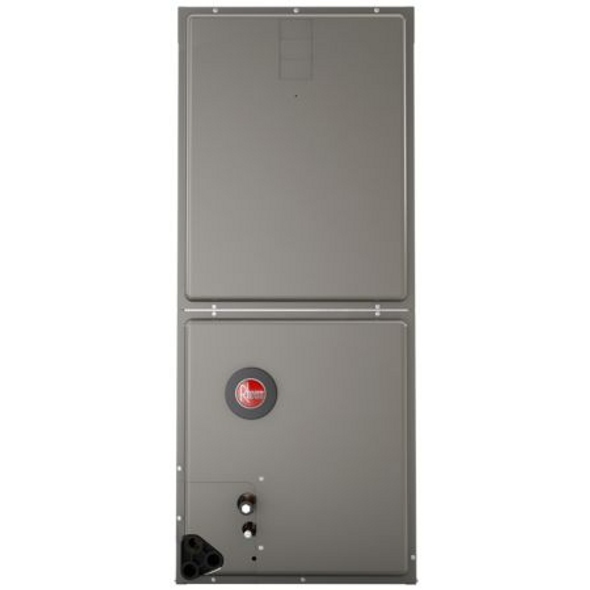

Rheem 4 Ton RH2TY4824STANNJ Endeavor® Line Air Handler – ECM Two‑Stage R‑454B
| Weight | 151 lbs |
|---|---|
| Dimensions | 21.69 × 24.5 × 55.5 in |
| Model Number | RH2TY4824STANNJ |
| Brand | Rheem / Ruud |
| Series | Endeavor® Line |
| Capacity | 48,000 BTU (4 ton) |
| Motor Type | ECM Constant‑Torque |
| Airflow Control | Two‑stage |
| Refrigerant | R‑454B (low GWP) |
| Cabinet Insulation | 1″ foil‑faced |
| Coil | Aluminum fins & internally grooved tubing |
| Installation Flexibility | 4‑way convertible (up/down/hor L/R) |
| Airflow Range | 1,050 – 1,400 cfm |
| Voltage / Phase | 208–240 V, single‑phase, 60 Hz |
| Warranty | 10‑year conditional parts (registration required) |
| Safety Feature | PlusOne® refrigerant detection system |
| Leakage Rate | < 2% air leakage at 1″ H₂O (ASHRAE 193) |
| Dimensions (HxWxD) | 55.5″ × 24.5″ × 21.69″ |
| Weight | 128 lb (58 kg) net |
Rheem RXBH-1724A07J 7kW Electric Heat Strip with Breaker – 208/230V, 1-Phase
| Weight | 10 lbs |
|---|---|
| Dimensions | 23 × 12 × 6 in |
| Brand | Rheem |
| Model Number | RXBH-1724A07J |
| Heater Type | Electric Heat Strip |
| Capacity | 7 kW |
| Voltage | 208/230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Breaker Included | Yes |
| Compatibility | Select Rheem/RUUD Air Handlers |
| Application | Residential / Light Commercial |
| Mounting Type | Internal |
