Goodman 5 Ton R-32 14.3 SEER2 Air Conditioning System Bundle with AMST60DU1300 Air Handler and optional 10 kW SmartFrame Heater Kit
From: $3,479.64
- Description
- Additional information
Description
The Goodman 5 Ton R-32 HVAC System Bundle delivers dependable cooling performance and efficient airflow for larger residential spaces or light commercial applications. This complete split system includes the GLXS4BA460 condenser, AMST60DU1300 multi-position air handler, and a 10 kW SmartFrame electric heater kit for integrated heating support.
Designed around the modern R-32 refrigerant platform, this Goodman system provides improved environmental efficiency while meeting current SEER2 energy standards. The AMST series air handler features a 9-speed ECM blower motor and internal TXV to optimize airflow and system efficiency across multiple installation configurations.
The included Goodman electric heater kit provides 10 kW of supplemental heating capacity, making the system suitable for installations requiring electric heat integration within the air handler.
This bundle is ideal for HVAC contractors, installers, and property owners looking for a reliable Goodman split system with straightforward installation and dependable long-term performance.
System Components Included
Condenser
Goodman GLXS4BA460 5 Ton R-32 Air Conditioner Condenser
14.3 SEER2 efficiency
Single-stage compressor
Designed for residential split system applications
Air Handler
Goodman AMST60DU1300 5 Ton Multi-Position Air Handler
9-speed ECM blower motor
Internal TXV expansion valve
All-aluminum evaporator coil
Optional:Electric Heater Kit
Goodman SmartFrame 10 kW Electric Heater Coil
Approximately 34,100 BTU heating output
Designed for Goodman air handler integration
Additional information
Goodman 5 Ton R-32 14.3 SEER2 Air Conditioner Condenser – GLXS4BA460
| Weight | 220 lbs |
|---|---|
| Dimensions | 35.5 × 35.5 × 39 in |
| Brand | Goodman |
| Model | GLXS4BA460 |
| Type | Central Air Conditioner Condenser |
| Cooling Capacity | 5 Ton |
| Refrigerant Type | R-32 |
| Efficiency Rating | 14.3 SEER2 |
| Compressor | Copeland Scroll |
| Coil Material | Copper tubing with aluminum fins (5mm) |
| Cabinet | Galvanized steel with gray powder-coated finish |
| Corrosion Resistance | 500-hour salt spray tested |
| Sound Level | Low-noise operation |
| Refrigerant Compatibility | R-32 |
| Application | Residential / Light Commercial |
Goodman AMST60DU1300 5 Ton Multi-Positional Air Handler with ECM Motor – R-32 Compatible
| Weight | 174 lbs |
|---|---|
| Dimensions | 24.625 × 21 × 58 in |
| Model: | AMST60DU1300 |
| Tonnage: | 5 Ton |
| Refrigerant Compatibility: | R-32 |
| Motor Type: | Multi-speed ECM (Electronically Commutated Motor) |
| Installation Positions: | Upflow, Downflow, Horizontal |
| Electric Heat Compatible: | Yes (Heat strips optional) |
| Coil Type: | All-Aluminum Evaporator Coil |
| Blower Motor: | Direct Drive ECM |
| Cabinet: | Heavy-Gauge, Durable Construction |
| Frame: | SmartFrame Sub-Structure |
| Warranty: | 10-Year Parts (with registration) |
| Application: | Residential and Light Commercial HVAC |
| Maintenance Features: | Dual front access panels for easy servicing |

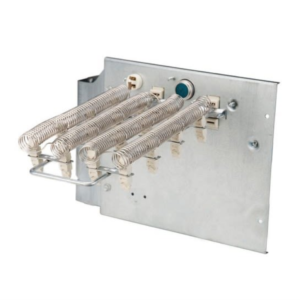

Goodman 10 kilowatt 34,100 BTU Smart frame Air Handler Heater Coil
| Weight | 8.0 lbs |
|---|---|
| Dimensions | 12.75 × 8.75 × 16.06 in |
| Brand | Goodman |
| Model | Smart Frame Air Handler Heater Coil 10 Kilowatt |
| Voltage | 208/240V |
| Heating Capacity | 34,100 BTU |
| Phase | 1 |
| Frequency | 60 Hz |
| Application | Designed for use with Goodman air handlers |
| Energy Efficiency | Optimized for energy-efficient heating |
| Frame Design | Smart frame design for ease of installation and durability |
| Safety Features | Built-in safety mechanisms for safe operation |
| Compatibility | Specifically designed for Goodman air handlers |
